The transom and how much it is out of shape gauging by the transom cover plates which were found in a bag of loose fittings

If you look at the transom the port side is its correct position and the starboard side as fallen down, due to a poorly dne replacement of the beam shelf down the starboard which was not refixed to the rest of the deck structure.

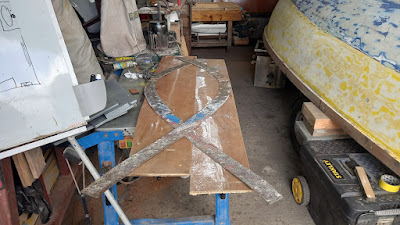

When we laid the two sets of transom cover plates they are identical in shape and length.


This shows that they were not put back on as they would have showed up the change in shape that came about when the starboard shelf repair was done.
Using these as patterns it should be able to gauge when we get the starboard side back to the correct shape when when start removing more of the starboard framework and let the hull regain the correct shape once more.
