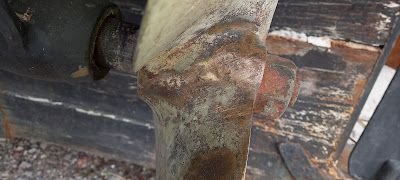

Cleaning up the portside propeller Shaft & the propeller to find out the diameter and pitch & the manufacturer of the propeller

Chance like a lot of James Silver / John Bain designed boats at the time Chance was build, they were twin screw single rudder designed.



The stern gear glands were of white metal and were very close fitting glands




The original propellers that were fitted when Chance was originally launched in 1948




The original manufacturer of the propeller can be seen as Thornycroft




On this photo is can be seen that the diameter is 17 1/2 " x 12 1/2"




These propeller shafts will have to be removed as there is work to be done on the stern tubes and the bearing changed to modern stern gear when Chance is re-engineered
