Dismantling the hanging wardrobe from the starboard side of the cabin

The wardrobe in the main cabin is made up of various parts which have to be taken apart and cleaned up. This photo is the bottom part of the lower part of the front of the wardrobe


The dowels which were in the two halves of the lower part were broken and now been drilled out so that new dowels can be made before gluing the two halves together.As before they were just dry fitted together


The two lower panels have several mortise and tenon joints on them which will have to be remade on the two vertical parts that make up the door frame.


This photo shows the tenon joints and the amount of mortises that have to be recut in the two vertical parts that make up the fdoor frames


The old vertical parts which are broken which are going to be remade

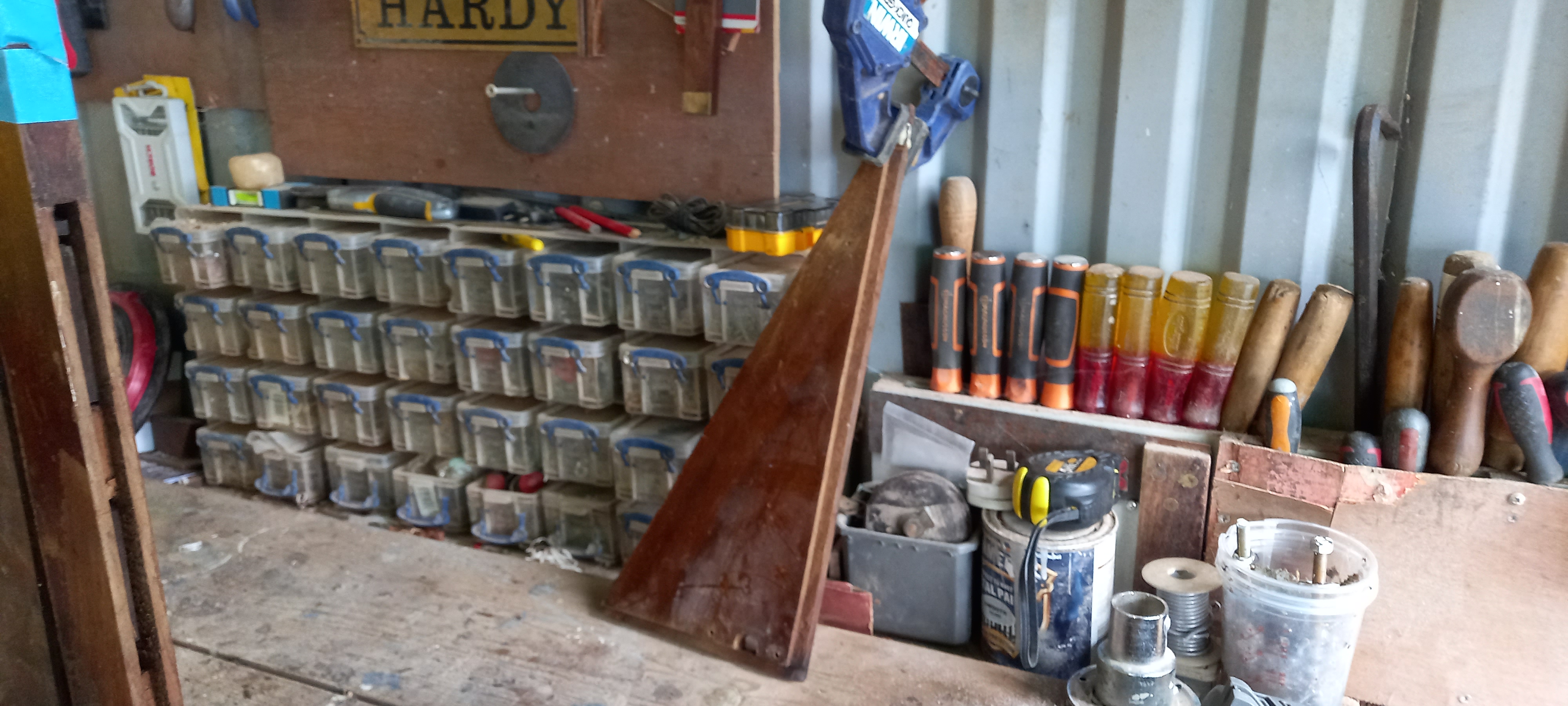

The triangle panel which makes up the shaped door that goes in inside this wardrobe front panel
